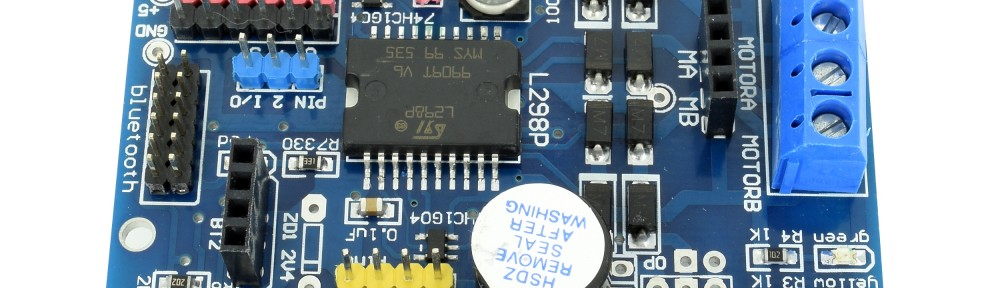

Product Overview
The product is compatible with Arduino plate development and uses digital pins D10 – D13. The module also contains a buzzer connected to terminal D4.
The module is recommended for beginners and can be used to control two motors simultaneously or a single stepper motor. The driver can control small to medium power motors, supporting a maximum of 2A. Shield site offers many additional connections and contains diodes to protect the driver.
Technical specifications:
- The logic supply voltage: 5V;
- VIN voltage: 6.5V – 12V;
- PWRIN voltage: 4.8V – 35V;
- Required current logic: maximum 36mA;
- Maximum motor current: 2A / motor;
- Maximum power dissipation: 25W;
- Size: 65 x 53mm
