MPU9250 and BMP280 10DOF Digital Accelerometer, Giroscope, Magnetometer and Barometer Module
MPU9250 and BMP280 10DOF has 4 sensors which provide very useful functions for your projects and can be used in wide range of applications. This module integrates Accelerometer, Gyroscope, Magnetometer and Digital Barometer in one tiny module.

SKU: CJM523261623694

Price: 12.56 $

Product in stock

SSL Certificate
Quantity
Loading Updating cart...

Overview

There are four very important sensors in this small and handy module namely: Accelerometer, Gyroscope, Magnetometer and Digital Barometer. Thus with the four sensors in a single module construction project it has never been easier.

This module can operate in low power mode so consuming 6.4μA and provides data from the compass at a resolution of 16 bits.

Specifications

  • Gyroscopic: 3 axes
  • Accelerometer 3 axes
  • Magnetometer
  • Barometer
  • Use two faces: MPU-9250 and BMP280
  • Voltage: 3 V to 5 V
  • Communications: IIC / SPI
  • 16-bit embedded converter
  • 16-bit output
  • Gyroscope range: ± 250 500 1000 2000 ° / s
  • Accelerometer range: ± 2, 4, 8, 16 G
  • Magnetometer range: ± 4800
  • Ray barometer: 300 hPa to 1100 hPa
  • Size: 14.3 x 20.5 mm

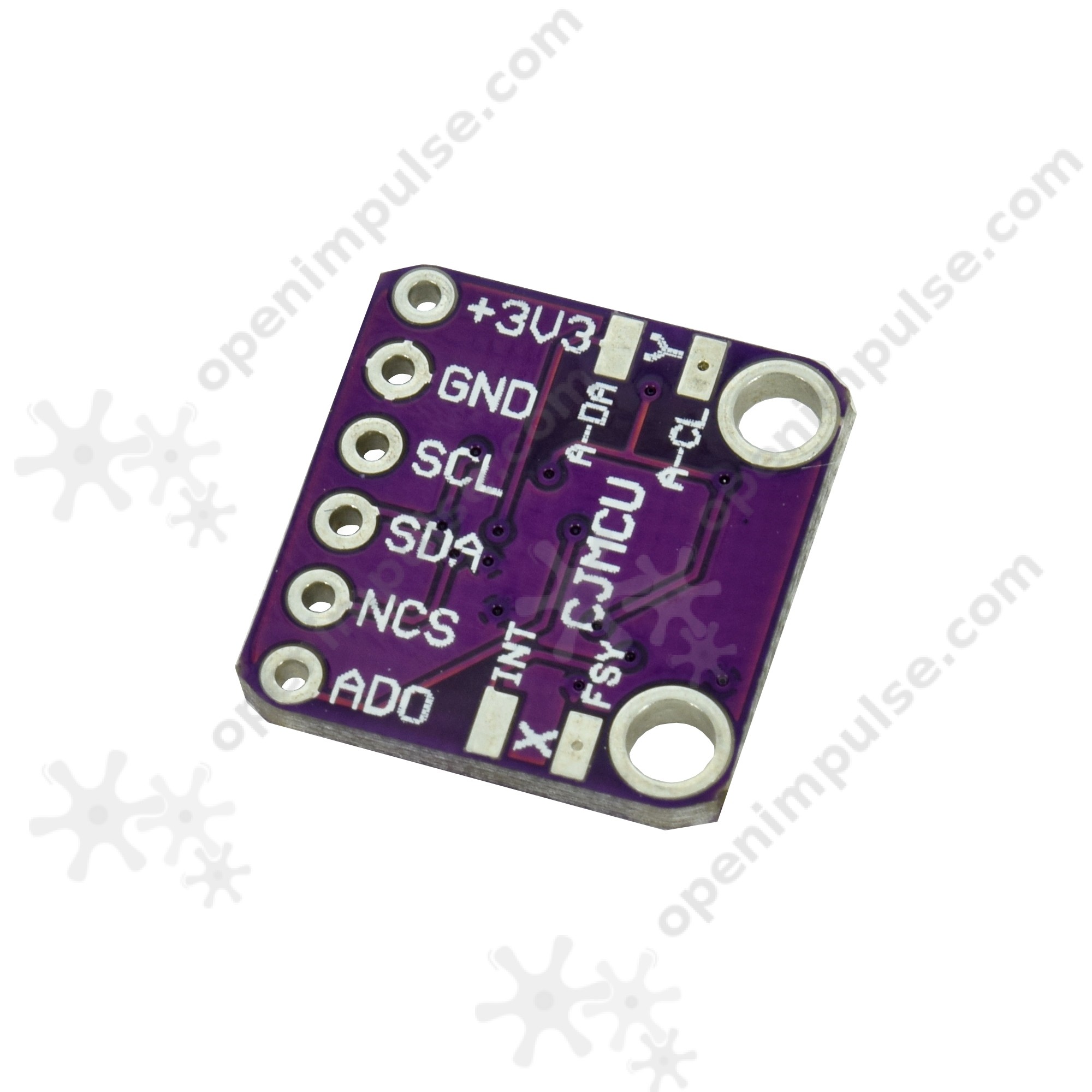

Pins:

  • VIN: Power supply
  • 3V3: Exit 3.3 V regulator
  • GND: pin table
  • SCL: Clock I2C / SPI Clock
  • SDA: Date I2C or SPI Data Input
  • SDO / SAO: SPI output Date / I2C Slave Address configuration
  • NCS: Chip Select for SPI mode only MPU-9250
  • CSB Chip Select for BMP280

For more details check the attached datasheet sites or examples of use for MPU9250  and BMP280 .
