USB Relay Module

Shop » Relay Modules » USB Relay Module
USB Relay Module
This USB relay module is ideal to use for home automation, robotics and other devices that need to be controlled directly from a computer.

SKU: LCT35530589799

Price: 5.31 $

Old Price: 9.68 $

Product in stock

SSL Certificate
Quantity
Loading Updating cart...

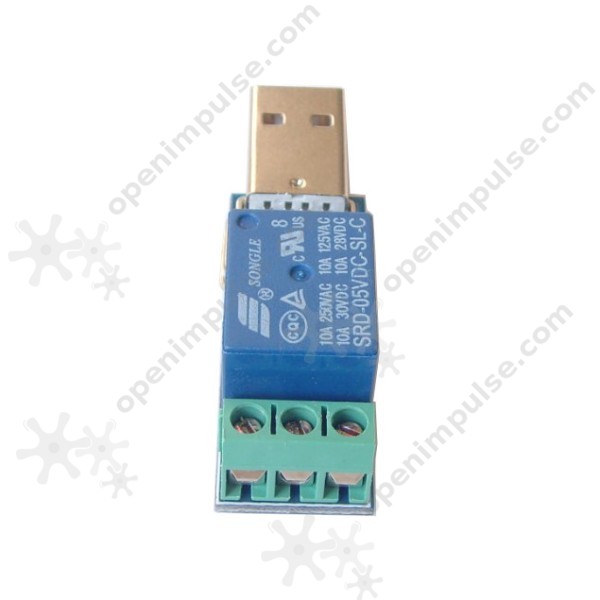

This is an USB enabled relay module that allows you to use the computer for controlling the relay output. This module is ideal for home automation, robotics, and more.

Specifications

  • On-board high-performance microcontroller chip
  • On-board CH340 USB to UART converter chip
  • On-board LEDs for power indication and relay status indication
  • Output capability 10 A / 250 VAC, 10 A / 30 VDC
  • PCB Size: 43.6 x 16.4 mm

The board uses a baud rate of 9600 bps (8 data bits, 1 stop bit, no parity) for the virtual serial port and the following communication protocol:

  • A start byte: 0xA0
  • A byte to indicate the relay address: 0x01
  • A byte to indicate the state of the relay: 0x00 (off) or 0x01 (on)
  • A check code (0xA2 for on or 0xA1 for off)

Communication example:

  • A0 01 01 A2  (the hexadecimal values of the bytes for turning the relay on)
  • A0 01 00 A1  (the hexadecimal values of the bytes for turning the relay off)
