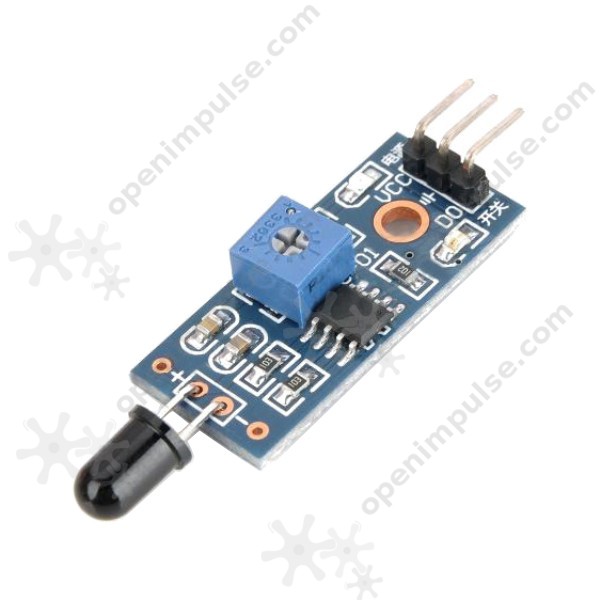

Flame Sensor Module
This module has a capability to detect flame with wavelength ranging from 760 nm to 1100 nm. It is a very efficient flame detector to be used in fire alarms and other fire detecting devices.

SKU: CQY17404375026,WUM39968448523

Price: 0.31 $

Old Price: 0.50 $

Product in stock

SSL Certificate
Quantity
Loading Updating cart...

Overview

The flame sensor can detect flame and infrared light source with wavelength ranging from 760 nm to 1100 nm.

It uses LM393 comparator chip which gives clean, stable digital signals and with driving ability of 15 mA.

It is a very efficient flame detector that can be used in fire alarms and other fire detecting devices.

This sensor should maintain a certain distance from the flame to prevent damage due to high temperature.

Specifications

  • LM393 comparator chip
  • Detection Range: 760 nm to 1100 nm
  • Operating Voltage: 3.3 V to 5 V
  • Digital Outputs: 0 and 1
  • Detection Angle: about 60 degrees
  • Adjustable sensitivity via potentiometer
  • LED lights indicators: power (red) and digital switching output (green)
  • Fixed bolt holes for easy installation
  • PCB Size: 32 x 14 mm
