A3144 Hall Switch Sensor Module
This module is based on 3144E Hall switch sensor for magnetic field detection. It can be used for testing motor speed, position detection and more.

SKU: SLI10665826241,CQY10191783109,WUM549239270016

Price: 0.56 $

Old Price: 1.99 $

Product in stock

SSL Certificate
Quantity
Loading Updating cart...

Overview

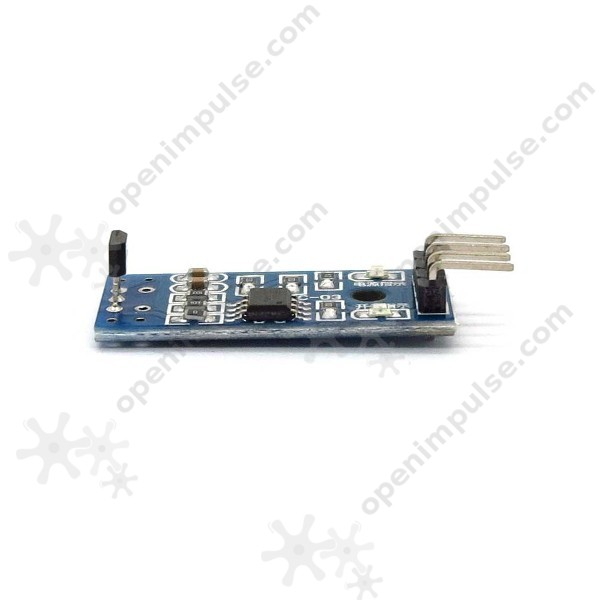

This module is based on the A3144E Hall switch sensor and it is designed to be used in applications requiring magnetic field sensing. It can be used for sensing motor speed, position and more.

It features two outputs: AO, the analog signal output and DO, the digital output, after being passed through a voltage comparator. The Hall sensor outputs a low level voltage when magnetic field is detected.

Module Interface Description

  • VCC: Positive power supply, 3.3 V to 5 V
  • GND: Negative power supply
  • DO: Digital signal output
  • AO: Analong signal output

Features

  • 3 mm mounting screw holes for easy installation
  • Power indicator
  • Comparator output indicator

Specifications

  • Chip: LM393 voltage comparator, A3144 Hall sensor
  • Working Voltage: 3 VDC to 5.5 VDC
  • Comparator output capability: 16 mA
  • PCB Size: 32 x 14 mm
