ADNS-3080 Optical Flow Sensor Module
ADNS-3080 optical flow sensor module is easy to use with Arduino boards. Although it is small with 30x30 pixel resolution, it still provides a frame update rate from 2000 to 6400 frames per second.

SKU: CJM37911482900,WUM536699142658

Price: 20.58 $

Old Price: 22.44 $

Product in stock

SSL Certificate
Quantity
Loading Updating cart...

Overview

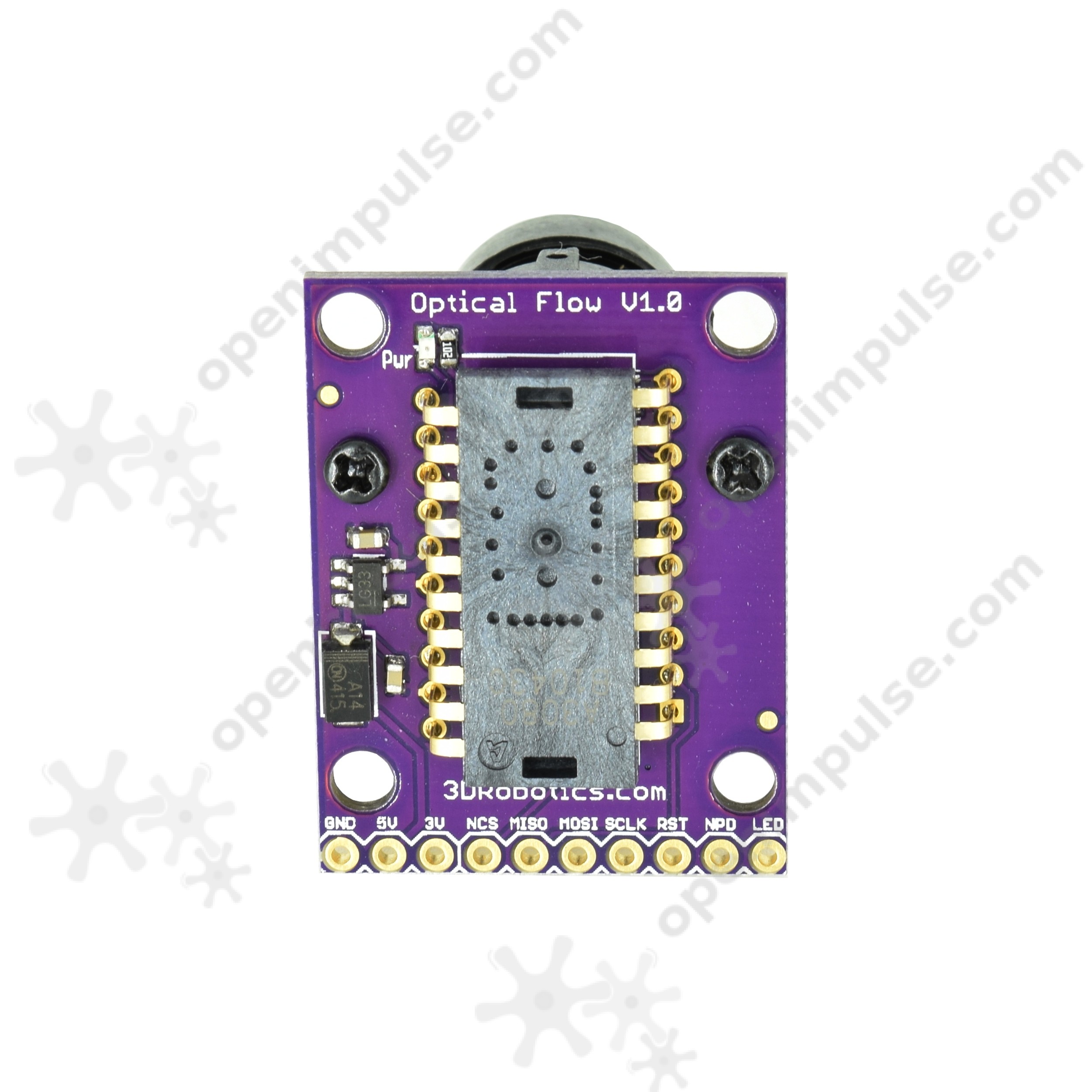

ADNS-3080 optical flow sensor module is easy to use with Arduino boards. The sensor is based on ADNS3080 technology, it is a good solution for a displacement sensor with resolution of 30 x 30 pixels and high speed frame rate from 2000 to 6400 frames per second, which contribute to high performance in low light. It provides SPI interface, which helps in a lot easier connection with most microprocessors.

Specifications

  • Chip: ADNS 3080
  • 30 x 30 pixel frame
  • frame update rate: 2000 to 6400 fps
  • SPI interface
  • 8mm lens 11 deg FOV
  • M12x0.5 standard lens mount

Use pins to connect  VCC, GND, MISO, MOSI, SCLK and NCS to your Arduino board . Load test code , then connect to a serial monitor.

A list of commands

  • c - displays configurations
  • f - sets the frame rate
  • and - a picture
  • I - continuous image displays
  • m - displays the movement
  • r - sets the resolution
  • s - sets shutter speed
  • z - delete any movement
  • a - frame rate auto / manual

For more details check the attached datasheet and examples for use with Arduino.
