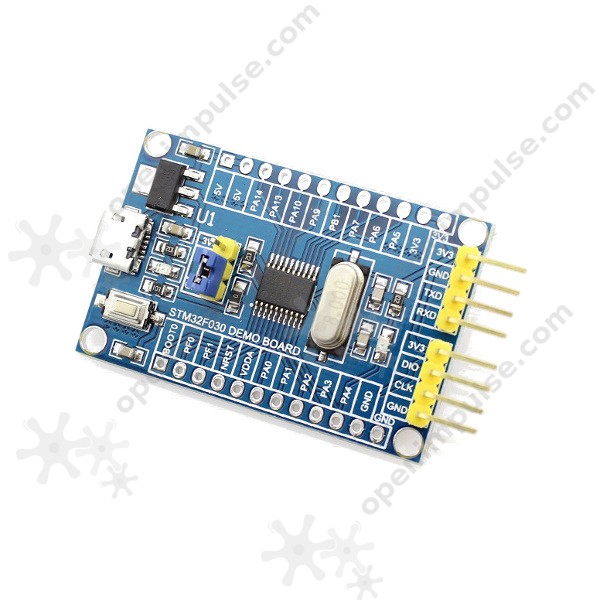

STM32F030F4P6 Mini Development Board

STM32F030F4P6 Mini Development Board
This is a development board based on STM32F030F4P6 ARM microcontroller architecture, designed to provide a low-cost platform that can still meet the requirements of many developers

SKU: SLI521701185107,WUM556545414102

Price: 2.34 $

Product in stock

SSL Certificate
Quantity
Loading Updating cart...

Overview

The STM32F030F4P6 boardis a high-speed embedded development board which offers very great performance at less power consumption. When in running mode, maximum power consumption is 22 mA, and 175 uA. This board features 5.5 V to 3.3 V regulator, RESET button, onboard LED for power indication, jumper BOOT option, output pins and mounted pinhead specifically for ISP connection or SWD. This board also integrates micro USB power supply interface and ISP/SWD programming/debugging interface. These features make it ideal for a wide range of applications which need a relatively high processing power and more communication capabilities.

Features

  • Low power consumption (depending on the application)
  • Communication: one SPI, one USART, and one I2C
  • 11-channel, 12-bit ADC
  • 15 GPIO pins

Specifications

  • Operating Voltage: 2.4 V to 3.6 V
  • Operating Frequency: 48 MHz
  • Timers: 1 advanced 4 general purpose
  • Flash memory: 16 kb
  • SRAM: 4 KB
